雷射加工技術特點應用實例
Examples of specialty of laser processing


可應用於各類金屬材質
Apply for all kinds of metal material

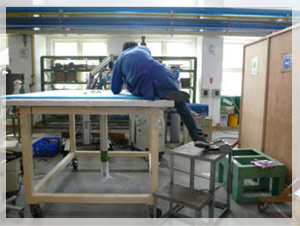

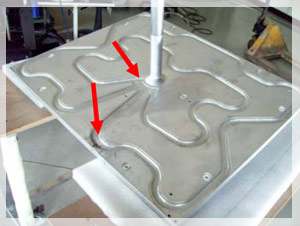

生產LCD用鋁合金加熱板
Aluminum alloy heating plate for LCD production

可應用於各類金屬材質
Apply for all kinds of metal material

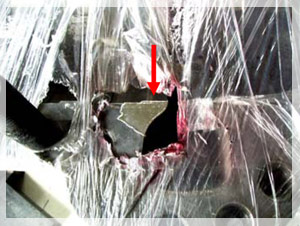

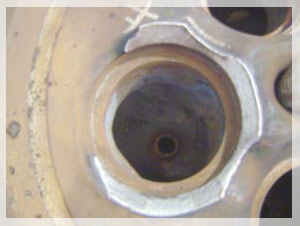

鑄鐵柴油引擎修補
Iron casting diesel engine

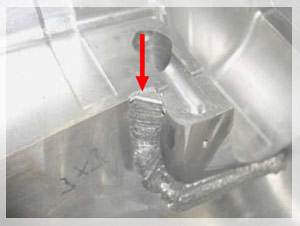

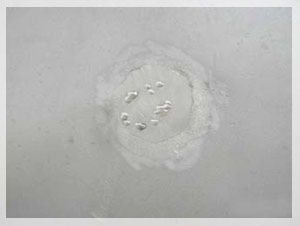

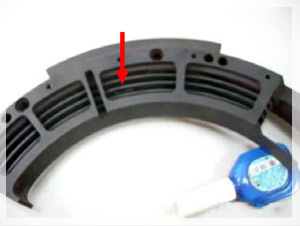

6061 T651鋁合金模具砂孔修補
6061 T651 aluminum alloy mold: sand
hole welding


能量密度高、熱影響區小、加工後工件變形量小
High density energy, limited heated area, minimized shape distortion.
修補處工件厚度3mm,修補後工件尺寸變化小於0.05mm。
Thickness for welding is 3mm, shape distortion under 0.05mm after welding.

微小區域精密修補及大面積尺寸修復皆適用
Small area precision welding and large area/size parts welding.

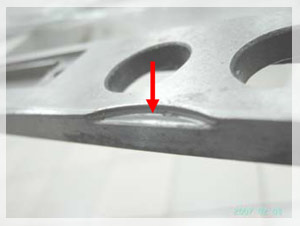

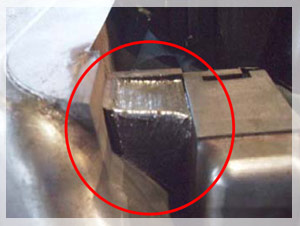

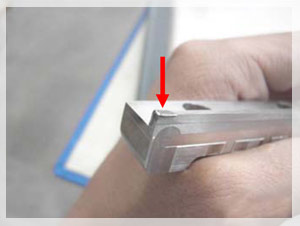

小零件缺角修補
Angle welding for small part

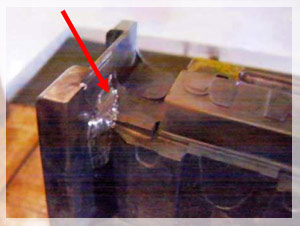

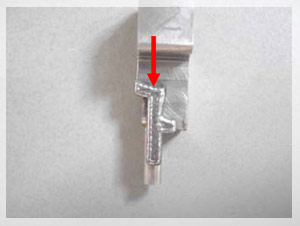

小零件區域性修補
Partial welding for small part


微小區域精密修補及
大面積尺寸修復皆適用
Small area precision welding and large
area/size parts welding.

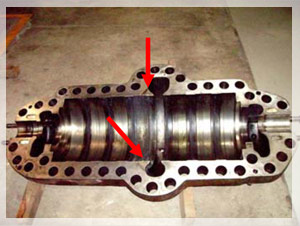

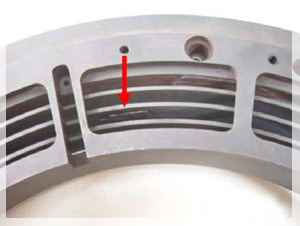

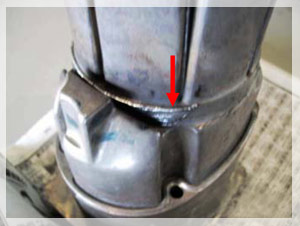

Pump外殼-修補前
Pump case: before welding
Pump外殼-修補後
Pump case: after welding


微小區域精密修補及
大面積尺寸修復皆適用
Small area precision welding and
large area/size parts welding.

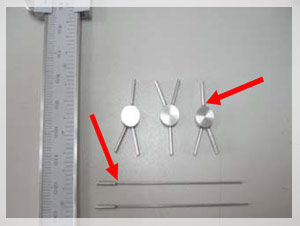

牙醫用零件精密焊接
Precision welding for dental parts

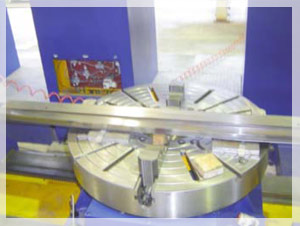

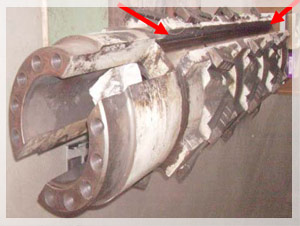

Mandrel sleeve修補-總長2,365mm
Mandrel Sleeve welding-2,365mmL


修補鍵結性強且與母材產生合
金化,無使用後脫落問題
Strong bonding, alloying after welding, no
detached problem after welding.

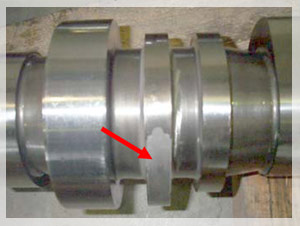

發電機凸輪軸-修補前
Power generator camshaft:before welding
發電機凸輪軸-修補研磨後
Power generator camshaft:
after welding



修補組織細緻、無孔洞、
無界面缺陷
Fine texture, no holes, no interface flaw
after welding
左上部份為雷射修補晶象
Upper left area is the crystal
image: after laser welding

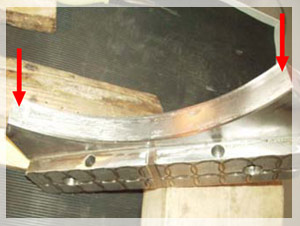

Mandrel sleeve-鉋削後實況
Mandrel sleeve: after planing



加工後硬度可達40-58 HRC
Hardness reaches 40-58 HRC
A.S.P23高硬度材質修補
A.S.P23 high hardness material welding
製罐工廠輸送桿
Transmission pole for can factory


加工前不需預熱、
加工後不需退火處理
No preheat before treatment or
annealing after treatment.

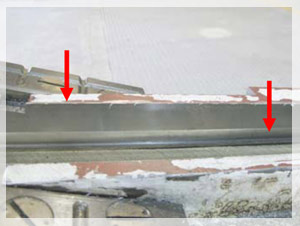

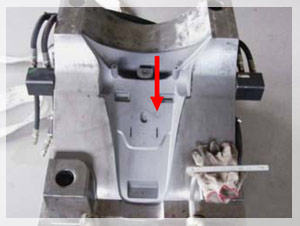

塑膠成型模大區域修補
Large area welding for plastic
injection mold
塑膠成型模修補厚度達40mm以上
Welding area over 40mm thickness on
plastic injection mold


加工前工件有滲氮、
熱處理皆可進行修補
Nitriding or heat treated parts
表面有熱處理過工件
Surface has been heat treated
表面有滲氮處理過工件
Surface has been nitriding


加工後可進行滲氮、咬花、
鏡面、熱處理
After treatment can be treated with nitriding,
structure s uc u e cauterizing, mirror finished and
heat treatment.

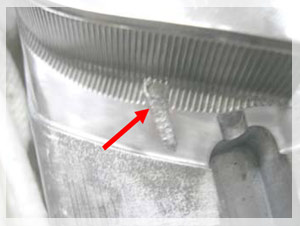

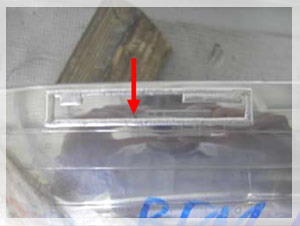

車燈鏡面模具
Mold for car light
鏡面模具設計變更
Mold design change for mirror mold


加工後可進行滲氮、咬花、
鏡面、熱處理
After treatment can be treated with
nitriding, structure cauterizing, mirror
finished and heat treatment.
模具修補後需做滲氮處理
Nitriding needed after mold welding
模具修補後需做咬花處理
Cauterizing needed after mold welding


雷射局部硬化及合金化處理
Partial laser hardening and alloying
treatment
雷射硬化後-硬度可達60HRC以上
The hardness-reach above 60HRC
after laser processing

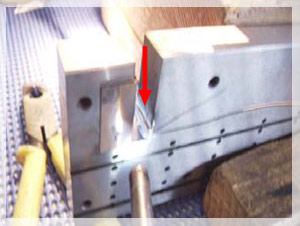

Crop Shear-處理前硬度52HRC
Crop Shear-hardness 52HRC
before laser processingroscope


雷射局部硬化及合金化處理
Partial laser hardening and alloying
treatment

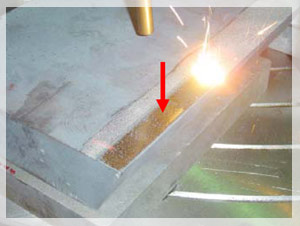

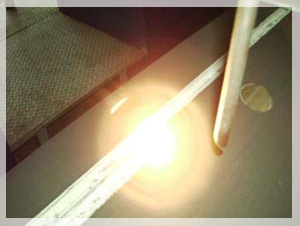

雷射硬化處理中實況
In laser processing
