德國 DSI簡介及雷射機特點
Introduction of DSI and DSI Laser Machine


德國DSI有目前雷射界最頂尖的技術,本公司為台灣原廠授權技術移轉的合作夥伴。
DSI Germany has the top laser technology in laser field and Yiu Hwa is DSI’s technology transfer and partner company in Taiwan.
特殊懸臂設計,不同於普通桌上型機種,特別適用於各種特殊工件磨損之修補。
The special cantilever design is different than desk-top type. It’s especially suitable for mending special parts wore out.
操作時使用16x顯微鏡進行加工。適用於高級工件的細微修補。
Operated by 16x microscope can fix the finest section of the high-end parts.
雷射機台可移動性高,對於特殊無法搬運之大型工件也可進行修補。
Highly mobilized laser stand can fix large industrial parts, which is not able to be transported.
目前已廣泛應用於各大企業各種金屬機械零件的修補。
This method has been used broadly in major enterprises on metal machine parts welding.

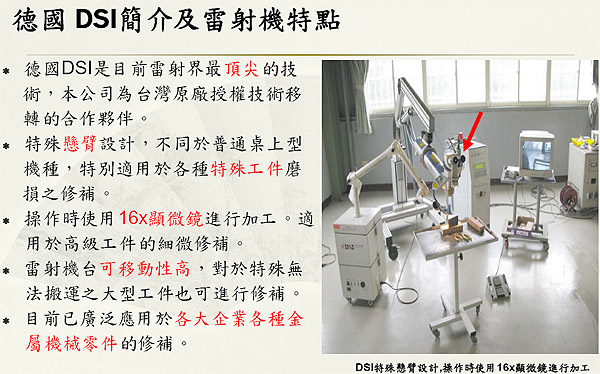

DSI特殊懸臂設計,操作時使用16x顯微鏡進行加工
DSI's Laser machine has special cantilever design and operated by 16x microscope

  DSI特殊懸臂設計,操作時使用16x顯微鏡進行加工
DSI’s Laser machine has special cantilever design and operated by 16x microscope

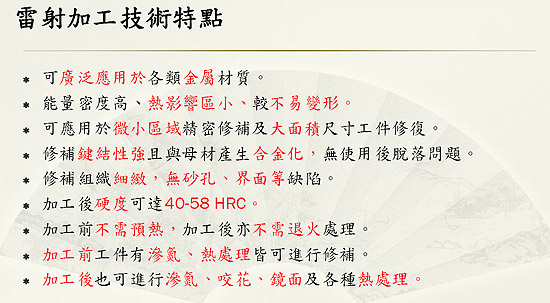

雷射加工技術特點
Specialty of Laser Processing


可廣泛應用於各類金屬材質。
Can be applied on all kinds of metal material.
能量密度高、熱影響區小、較不易變形。
High density energy, limited heated area thus minimized shape distortion.
可應用於微小區域精密修補及大面積尺寸工件修復。
Can be applied for small area precision welding and large area/size parts welding.
修補鍵結性強且與母材產生合金化,無使用後脫落問題。
After welding the bonding between metal is strong and the welding material is able to alloying with original parts material, thus no detached problem after welding.
修補組織細緻,無砂孔、界面等缺陷。
The fine welding texture will not have flaws such as pin hole or interface flaw etc.
加工後硬度可達40-58 HRC。
Hardness can reach 40-58 HRC after processing.
加工前不需預熱,加工後亦不需退火處理。
No need for preheated before processing, or annealing after processing.
加工前工件有滲氮、熱處理皆可進行修補。
Can be applied on parts, which have been treated with nitriding or heat-treatment before.
加工後也可進行滲氮、咬花、鏡面及各種熱處理。
After laser processing, the parts can be treated with nitriding, structure cauterizing, mirror finished or all kinds of heat-treatment as well.
可應用於局部硬化及合金處理。
Can be applied for partial laser hardening and alloying treatment.
