實例A：心軸修補
Example A: Mandrel sleeve
 |
 |

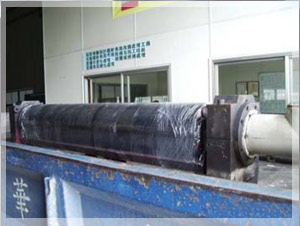

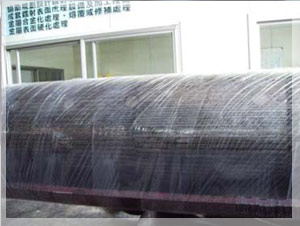

心軸-2,365mm重約1噸
Mandrel sleeve: 2,365mmL, Weight 1 Ton |

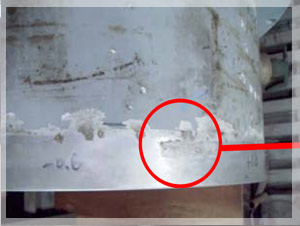

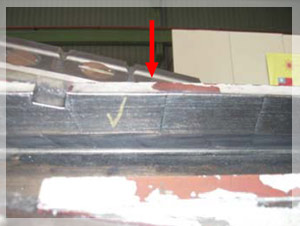

心軸-修補前
Mandrel sleeve: before welding |
|
實例A：心軸修補
Example A: Mandrel sleeve
 |
 |

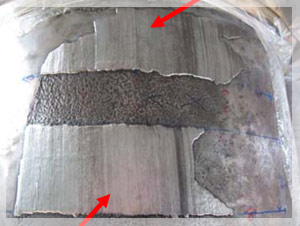

心軸-修補完成（未鉋削研磨前實況，總修補
長度達2米）
Mandrel sleeve: after welding (Before
mechanical planing or grinding, total
welding area is 2 Meters). |
心軸-鉋削完成
Mandrel sleeve: after mechanical planing |
|

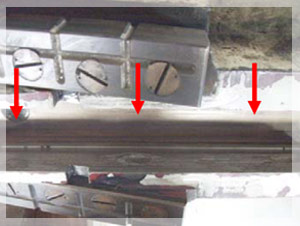

實例B：高電流導電接觸器
Example B: Contactor for large current
 |
 |

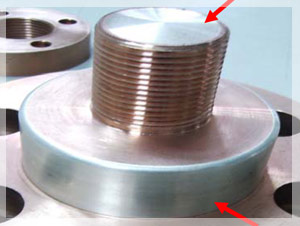

接觸器
Contactor |
接觸片
Contact |
|

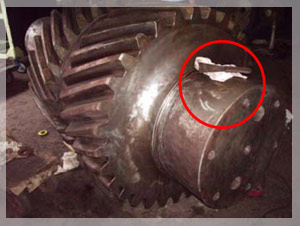

實例C：傘齒輪面再生
Example C: Bevel gear - surface regenerated
 |
 |

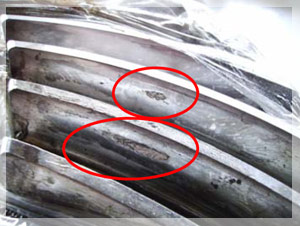

齒輪面再生前實況
Gear surface: before regenerated |
齒輪面再生後實況
Gear surface: after regenerated |
|

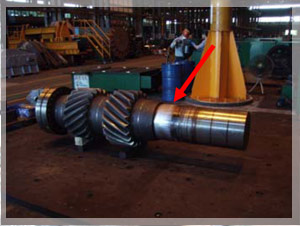

實例D：齒軸軸承面再生
Example D: Pinion shaft - surface regenerated
 |
 |

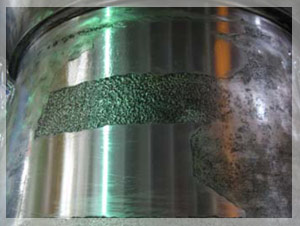

15T齒輪軸軸承面局部生鏽產生蝕孔
Surface of 15T pinion shaft rusted and
holes occurred |
軸承面鏽蝕部分情形
Rust in surface of pinion shaft |
|
實例D：齒軸軸承面再生
Example D: Pinion shaft - surface regenerated
 |
 |
軸承面雷射修補完未研磨情形
Welded area on shaft surface:
before grinding |

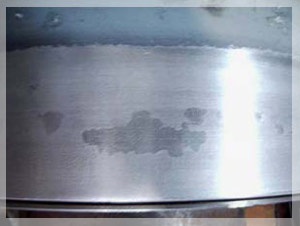

軸承面雷射修補研磨後情形
Welded area on shaft surface:
after grinding |
|
實例E：齒軸油封處修補
Example E: Pinion shaft - area on oil seal welded
 |
 |

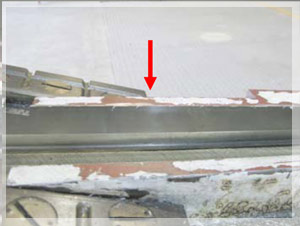

齒輪軸油封處磨損實況
Area on oil seal worn out. |

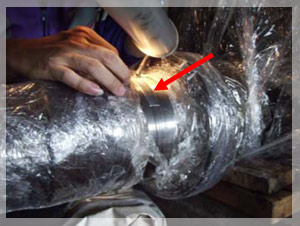

雷射修補中實況
Pinion shaft: in laser processing |
|
實例E：齒軸油封處修補
Example E: Pinion shaft - area on oil seal welded
 |
 |
雷射修補處未車修實況
Welded area on pinion shaft:
before turning |

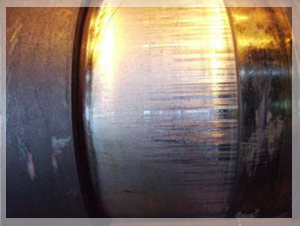

雷射修補處經車修後實況

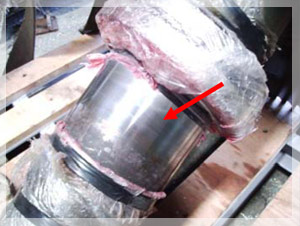

Welded area on pinion shaft:
after turning |
|
實例F：齒軸軸承處雷射修補
Example F: Pinion shaft - area on bearing welded
 |
 |

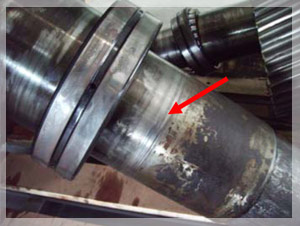

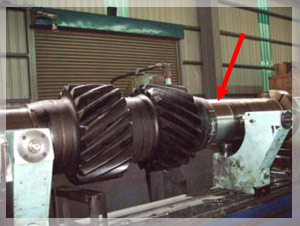

齒軸軸承處磨損實況
Pinion shaft: area on bearing worn out |
齒軸軸承處磨損實況
Pinion shaft: worn-out area on bearing |
|
實例F：齒軸軸承處雷射修補
Example F: Pinion shaft - area on bearing welded
 |
 |

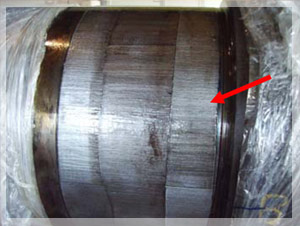

齒軸軸承處雷射修補後未研磨
Welded area on bearing:
before grinding |

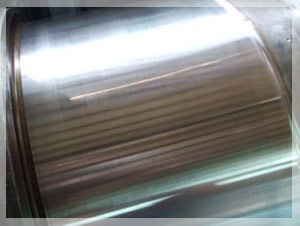

齒軸軸承處已研磨實況
Welded area on bearing:
after grinding |
|
實例F：齒軸軸承處雷射修補
Example F: Pinion shaft - area on bearing welded
 |
 |

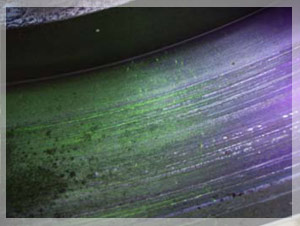

齒軸軸承處研磨完MT實況
Pinion shaft: In MT processing |
齒軸軸承處已研磨實況
Welded area on bearing: after grinding |
|
實例G：齒輪箱軸承處修補
Example G: Gear box - area on bearing welded
 |
 |

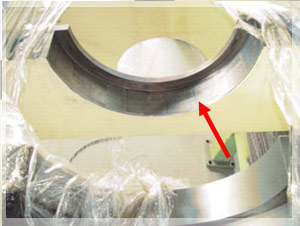

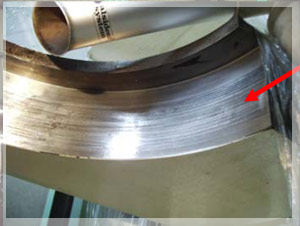

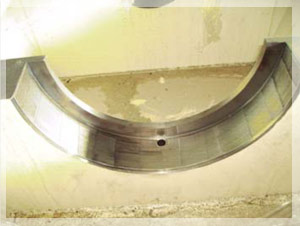

齒輪箱軸承處磨損實況
Gear box: area on bearing worn out |
齒輪箱軸承處磨損實況
Gear box: worn-out area on bearing |
|
實例G：齒輪箱軸承處修補
Example G: Gear box - area on bearing welded
 |
 |
齒輪箱軸承處修補後未車修實況
Welded area on bearing:
before turning |
齒輪箱軸承處修補後未車修實況
Welded area on bearing:
before turning |
|
實例G：齒輪箱軸承處修補
Example G: Gear box - area on bearing welded
 |
 |

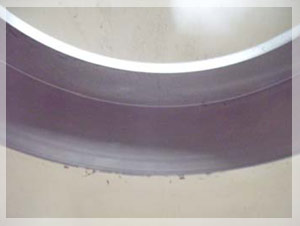

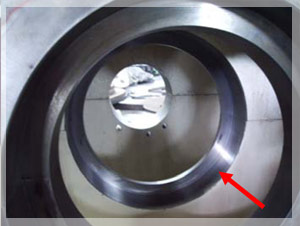

齒輪箱軸承處修補後已車修實況
Welded area on bearing:
after turning |
齒輪箱軸承處修補後已車修實況
Welded area on bearing:
after turning |
|
實例H：Shapemeter roll表面雷射硬化
Example H: Shapemeter roll - laser hardening
 |
 |
雷射硬化處理後
After laser hardening treatment |
|
實例I：鋁合金伸縮法蘭修補
Example I: Al alloy flexible flange
 |
 |

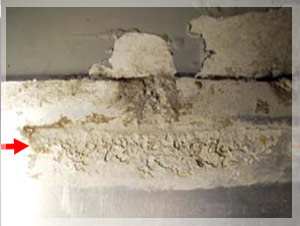

伸縮法蘭雷射修補前情形
Flexible flange: before welding |
|
